Arcade 3 Aluminium Roller Shutter
(118mm) Ultra-strong aluminium roller shutter for large shopfronts and high-security applications
The ARCADE 3 is a heavy-duty aluminium roller shutter designed for high-security environments and large-scale openings. Manufactured with a 118mm extruded aluminium slat, it provides strength, durability and functional protection while retaining architectural appeal. Suitable for openings up to 4m high and 10m wide in a single span, ARCADE 3 is the preferred choice for retail, commercial and public spaces requiring robust security and versatile design options.
Key Features
Secure
Low Maintenance
Customisable
Quiet
Specifications Summary
| Feature | Details |
|---|---|
| Door Type | Heavy-duty Aluminium Roller Shutter |
| Span Width | Height: 5000 mm (motorised), 3000 mm (Manual) Width: 11500 mm (motorised), 3000 mm (Manual) |
| Operation | Manual or motorised |
| Curtain / Slats | 118mm x 1.5mm extruded aluminium slats with nylon end clips |
| Noise | Optional buffers for quieter operation |

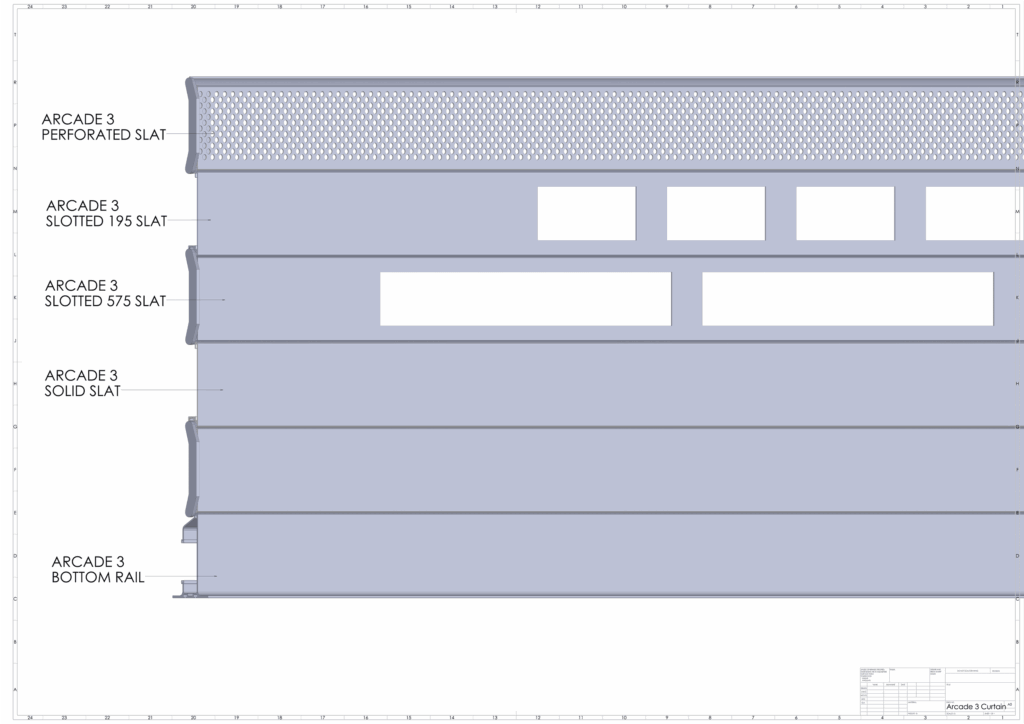

| Options | Slotting with acrylic, polycarbonate infills or perforated aluminium slats for airflow and visibility |
| Locking | Centrally mounted bottom rail lock; not recommended for motorised doors |
| Finish | Matt natural anodised standard; powder coating optional |
| Applications | Retail shopfronts, commercial buildings, hospitality, public facilities, sporting complexes, security car parks |
Additional notes
- Motorisation: Includes guides, motor with manual release, and compatible automation and safety accessories.
- Curtain Options: Polycarbonate infills available on perforated slats.
- Smoke Control: Smoke baffle motors available for shopfront applications.
- Side Guides: 105mm x 35mm extruded aluminium with 100mm leg for fixing.
