Mikado Multi Folding Door
User-friendly aluminium folding doors with ventilation
The Mikado Folding Door is designed for ease of use, ventilation and flexible access solutions. Constructed from extruded aluminium with interlocking hinges and rollers, the panels fold, slide and stack neatly into a pocket with minimal effort. Available in single or bi-parting configurations, MIKADO can also be designed with a curved track for increased flexibility, allowing panels to travel around corners. With a choice of infill panels, the MIKADO provides both functionality and a pleasing visual appearance, making it ideal for commercial, retail and hospitality applications.
Key Features
Low Maintenance
Customisable
Quiet
Space Efficient
Specifications Summary
| Feature | Details |
|---|---|
| Door Type | Aluminium folding door system |
| Panel Sizes | 150 mm or 300 mm wide panels |
| Max Height | Up to 3,600 mm |
| Width | Unlimited (stacking into pocket) |
| Operation | Manual hand-push; panels fold and slide into wall pocket |
| Track Options | Straight or curved overhead track |
| Panel Infill | Standard 3 mm clear polycarbonate; optional solid aluminium or perforated aluminium for added security |
| Locking | Lead post lockset every ~2 m; lock clip design allows easy maintenance |
| Finish | Clear anodised or powder coated |
| Applications | Retail, hospitality, medical, social and sports complexes, commercial premises |
Additional notes

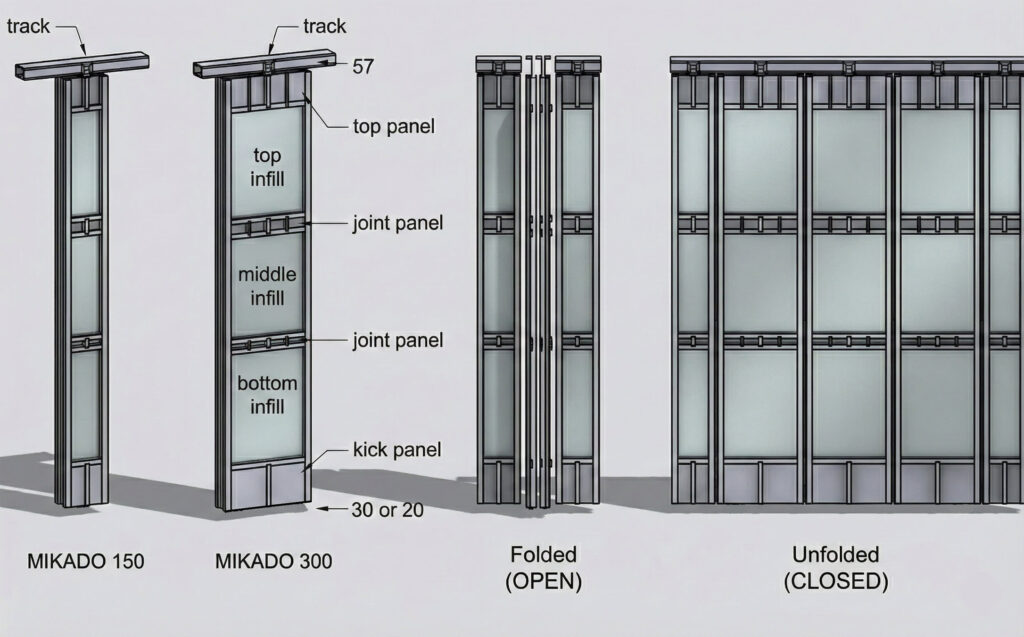

- Panels: Aluminium extrusions with polycarbonate infils
- Top Guide: 41mm Top guide which can be recessed
- Larger doors can be bi-folds, and open into both sides of the opening
- Standard finish: Clear Anodised; optional powder coat
